Serving the
Telecom and industrial markets for 21 years !
25+I
and 25+P
Our
Exclusive Design
The Coolest Running Backplane Chassis On the market!
The 25+ was
developed to increase the density in a dialer, without over
heating. For years
overheating of the chassis caused high card and component
failure. We went to our lab and developed an affordable
cooling package. Filling the server with 12 Dialogic
cards, tests showed the internal chassis temperatures were held
at 100*F Maximum, in a 70* Ambient. In the 24++ with the
same count of Dialogic cards, the internal temperature rose to
135*F. This unique design improved the reliability of the
server, but also dramatically reduced component failures.
Money well spent to reduce company down time.
15 PCI Shown with 3 drive RAID
PCI Version

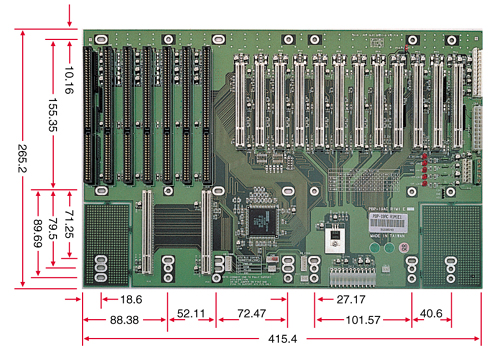

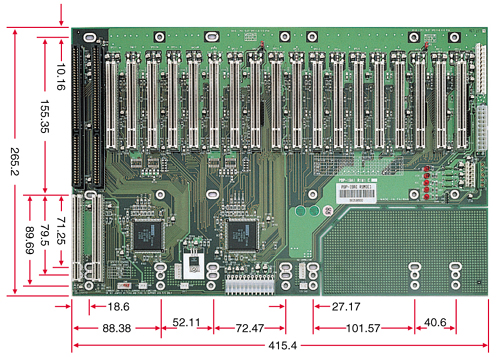

Pictures of actual
machines
PICMC 1.3 Only
Note:
The extra cooling is only available in the 5U Chassis.
Cooling fans are mounted externally to clear some
internal cards. They are reversible for inside
mounting.
Base Features:
- Standard 5U, 26" deep Rackmount Chassis
-
800 Power Correcting
Front Mount Redundant PSU
- 12 useable ISA Slots available.
- Filtered Front door for dirty atmospheres
- Will accommodate full length cards
- 3- 4" Mid-mount cooling fans
- Rolled edge stamping eliminating sharp edges
- One Thumb Screw removable cover
- Extremely Rugged Reusable Chassis
- Recommended 12 Communications Max
- Can be split with ISA/PCI
- Choice of CPU Ranges
- Raid Available
- Will hold 3 hard drives *, 1 CDRom, 1 Floppy
- One Year Next Day Parts, NO BS Warranty
