IPC Industrial Passive
Backplanes PICMC 1.0 |
|
Image |
Description |
Suggested
SBC |
|
 |
JSP-08A7
8-slot (7xPCI) |
- Fit for any desktop chassis
- ATX power connector support
- 217.96(L) x 257(W) mm;8.58"(L) x
10.12"(W)
|
|
|
JSP8777VG2A
JSP8773VG
JSP8779VG2A |
|
 |
JSP-08P34
8-slot (3xPCI) |
- Fit for any some node chassis
and desktop case
- 217.96(L) x 257(W) mm;
8.58"(L) x 10.12"(W)
|
|
|
|
|
 |
JSP-14AA
14-slot (10xPCI) |
- 2.4 mm PCB thickness
- ATX power connector support
- Fit for any 14-slot chassis
- 316.87(L) x 257.18(W) mm;12.48"(L) x
10.13"(W)
|
|
|
|
|
 |
JSPI-14P4
14-slot (4xPCI) |
- 2.4 mm PCB thickness
- ATX power connector support
- Fit for any 14-slot chassis
- 317(L) x 257(W) mm;12.48"(L)
x 10.12"(W)
|
|
|
|
|
 |
JSP-13R4
13-slot (4xPCI) |
- Fit for any 14-slot chassis
- Special design for full-lengthed PCI
cards
- ATX power connector support
- 317(L) x 257(W) mm;12.48"(L) x
10.12"(W)
|
|
|
|
|
 |
JSP-14A7
14-slot (7xPCI) |
- Fit for any 14-slot chassis
- Suitable for advanced CTI application
- ATX power connector support
- 317(L) x 257(W) mm;12.48"(L) x
10.12"(W)
|
|
|
|
|
 |
JSP-14AC
14-slot (12xPCI) |
- Fit for any 14-slot chassis
- Suitable for advanced CTI
application
- ATX power connector support
- 317(L) x 257(W) mm;12.48"(L)
x 10.12"(W)
|
|
|
|
|
 |
JSP-14AC-B
14-slot (12xPCI) |
- Fit for any 14-slot chassis
- Suitable for advanced CTI application
- ATX power connector support
- 317(L) x 260(W) mm;12.48"(L) x 11"(W)
|
|
|
|
|
 |
JSP-14P4
14-slot (4xPCI) |
- Fit for any 14-slot chassis
- ATX power connector support
- The most popular and reliable
PICMG backplane
- 317(L) x 257(W) mm;12.48"(L)
x 10.12"(W)
|
|
|
|
|
 |
JSP-19AC
19-slot (12xPCI) |
- Fit for any 20-slot chassis
- ATX power connector support
- The most popular and reliable
PICMG backplane
- 415.4(L) x 265.2(W) mm
|
|
|
|
 |
JSP-19AI
19-slot (18xPCI) |
- 4-layer PCB with ground and power
- Frame rated PCB at 94-V0
- Support ATX type and 3.3V power
connector
- LED indicator for power signal status
- Reserve terminal block connector for
wiring
- Equipped with gold-plated connector
for better contact
- 415.4(L) x 265.2(W) mm
|
|
|
|
|
 |
JSP-19P4
19-slot (4xPCI) |
- Fit for any 20-slot chassis
- ATX power connector support
- Sufficient ISA slots for CTI
application
- 415.4(L) x 265.2(W)
mm;16.35"(L) x 10.44"(W)
|
|
|
|
|
 |
JSP-13D4
13-slot dual-system |
- Fit for any 14-slot chassis
- Designed for fault-tolerant
computing
- ATX power connector support
- 317(L) x 257(W) mm;12.48"(L)
x 10.12"(W)
|
|
|
|
|
 |
JSP-18D4
18-slot dual-system |
- Fit for any 20-slot chassis
- Designed for fault-tolerant computing
- ATX power connector support
- 415.4(L) x 265.2(W) mm;16.35"(L) x
10.44"(W)
|
|
|
|
|
 |
JSP-06P464
6-slot (4x64-bit |
- Fit for node chassis
- ATX and AT power connector support
- 310.19(L) x 140.21(W) mm;12.21"(L) x
5.52"(W)
|
|
|
|
|
 |
JSP-06P4
6-slot (4xPCI) |
- Fit for any some node chassis
- ATX power connector support
- 263.1(L) x 140.2(W)
mm;10.36"(L) x 5.52"(W)
|
|
|
|
|
 |
JSP-06P3
6-slot (3xPCI) |
- Fit for any some node chassis
- ATX power connector support
- 263.1(L) x 140.2(W) mm;10.36"(L) x
5.52"(W)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Industrial
Backplane PICMG 1.2 |
 |
JSP-06V564
Vertical 6-slot (2xPCI-X, 3xPCI) 64-bit |
- Fit for 2U chassis
- ATX power connector support
- 321.94(L) x 83(W)
mm;12.67"(L) x 3.27"(W)
|
|
|
JSP8716VG2A
JSP8820VG2 |
|
 |
JSP-06P564
6-slot (2xPCI-X, 3xPCI) 64-bit |
- Fit for 6-slot node chassis
- ATX and aux power connectors
support
- 310(L) x 140.2(W) mm;12.2"(L)
x 5.52"(W)
|
|
|
JSP8716VG2A
JSP8820VG2 |
|
 |

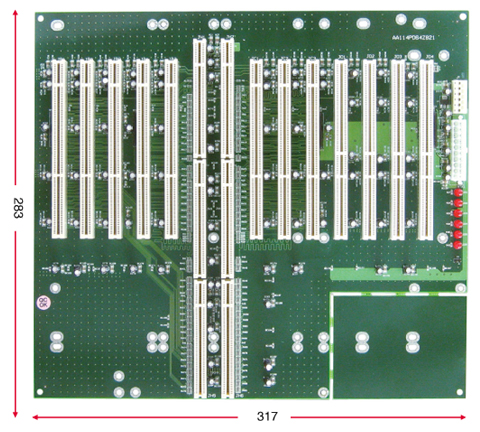

JSP-14PD64
14-slot (4xPCI) |
- PICMG 1.2
- Three PCI-X buses, one PCI bus
- 1 SHB, 2 PCI-X, 3 PCI-X, 3 PCI-X and
4 PCI
- Fit for 4U chassis
- 283(L) x 317(W) mm;11.14"(L) x
12.48"(W)
|
|
|
JSP8716VG2A
JSP8820VG2 |
|
| |
|
|
|
 |
PBPE-08P41
8-slot [PCI-E x8 (1, x4 signal), PCI-E x16 (2, x8 signal), PCI
(4)] |
- Fit for Node chassis
- For ROBO-8920VG2 PICMG 1.3
system host board
- Four USB ports
|
|
|
Any of these will work in 1.3
Xeon
JSP8210VG2AR
JSP8120VG2R
JSP8921VG2R
Core2
JSP8920VG2
JSP8912VG2AR
|
|
 |
PBPE-06P2
6-slot [PCI-E x8 (1, x4 signal), PCI-E x16 (2, x8 signal), PCI
(2)] |
- Fit for Node chassis
- For JSP-8920VG2 PICMG 1.3
system host board
- Four USB ports
|
|
|
JSP8913VG2AR
JSP8914VG2AR
Pentium M M/Celeron
JSP8911VG2A
Pentium 4
JSP8910VG2A |
|
 |
PBPE-06A364
6-slot [PCI-E x16 (2, x8 signal), PCI-X (2), PCI (1)] |
- Fit for Node chassis
- For JSP-8920VG2 PICMG 1.3
system host board
- Four USB ports
- Dual SATA ports
- Two PCI-X buses support two
PCI-X expansion slots
|
|
|
JSP-8920VG2
|
|
 |
PBPE-19AG64
19-slot [PCI-E x8 (1), PCI-E x4 (1), PCI-X (16)] |
- Fit for 4U up chassis
- Dedicated to ROBO-8920VG2
PICMG 1.3 system host board
- Four PCI-X buses support 16
PCI-X expansion slots
|
|
|
JSP-8920VG2
|
|
 |
JSP-E14AD64
14-slot [PCI-E x8 (1), PCI-E x4 (1), PCI-X (8), PCI (3)] |
- Fit for 4U chassis
- Dedicated to JSP-8920VG2 PICMG 1.3
system host board
- Four PCI-X buses support eight PCI-X
expansion slots
|
|
|
JSP-8920VG2 |
|
 |
JSPE-06V464
Vertical 6-slot [PCI-E x4 (1), PCI-X (4)] PICMG 1.3 Industrial
Backplane |
- Fit for 2U chassis
- Dedicated to JSP-8920VG2
PICMG 1.3 system host board
- Dual PCI-X buses support four
PCI-X slots
|
|
|
JSP-8920VG2 |
|
| |
|
|
|
|
Graphic
Class Industrial Backplane (Graphic-Centric) PICMG 1.3 |
 |
PBPE-06V
Vertical 6-slot [PCI-E x1 (4), PCI-E x16 (1)] |
- Fit for 2U chassis
- Four USB ports
- Dual SATA port
- 24-pin ESP12V power connector
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-06V3
Vertical 6-slot [PCI-E x4 (1), PCI-E x16 (1), PCI (3)] |
- Fit for 2U chassis
- Four USB ports
- Dual SATA ports
- For JSP-8912VG2AR PICMG 1.3 system
host board
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-05A364
5-slot [PCI-E x16 (1), PCI-X (2), PCI (1)] |
- Fit for Node chassis
- Four USB ports
- Dual SATA ports
- Two PCI-X buses support two PCI-X
expansion slots
- For JSP-8912VG2AR PICMG 1.3 system
host board
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-06P3
6-slot [PCI-E x16 (1), PCI-E x4 (1), PCI (3)] |
- Fit for Node chassis
- Four USB ports
- Dual SATA ports
- For JSP-8912VG2AR PICMG 1.3
system host board
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-06P4
6-slot [PCI-E x8 (1, x4 signal), PCI (4)] |
- Fit for Node chassis
- For JSP-8912VG2AR PICMG 1.3 system
host board
- Four USB ports
- Dual SATA ports
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-07P4
7-slot [PCI-E x4 (1), PCI-E x16 (1), PCI (4)] |
- Fit for Node chassis
- Four USB ports
- Dual SATA ports
- For JSP-8912VG2AR PICMG 1.3
system host board
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-12AA64
12-slot [PCI-X (8), PCI-E x16 (1), PCI (2)] |
- Fit for 4U chassis
- Four USB ports
- Dual SATA ports
- Two PCI-X buses support eight
PCI-X expansion slot
- For JSP-8912VG2AR single
board computer
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-12A9
12-slot [PCI-E x16 (1), PCI-E x8 (1, x4 signal), PCI (9)] |
- Fit for 4U chassis
- Four USB ports
- Dual SATA ports
- For JSP-8912VG2AR PICMG 1.3
system host board
|
|
|
JSP-8912VG2AR |
|
 |
JSPE-13A8
13-slot [PCI (8), PCI-E x16 (1),PCI-E x1 (3)] |
- Fit for 4U chassis
- Four USB ports
Dual SATA port
- 24-pin ESP12V power connector
|
|
|
|
|
|
|
